Many anthropogenic sources of volatile organic compounds (VOCs) originated from industrial activities can be toxic as well as deadly to humans and detrimental to the environment. Bio- filtration represents a cost effective and democratic technology that can be used for the control of biodegradable VOCs and offensive odour from air streams. Additionally, air bio-filtration can be used with soil vacuum extraction and air stripping of groundwater to treat VOCs extracted from those matrices during cleanup operation.

Bio-filtration Operation
  The literature describes three biological types of systems for treating contaminated air streams. These are biotrickling filters, bioscrubbers and biofilters. The latter is the focus of this paper. Fundamentally, two main principles govern the bio-catalytic operation of a biofilter. Initial transfer of anthropogenic contaminants from the contaminated air feed to the support media, and the subsequent bio-catalyst to carbon dioxide, water, biomass, and other by-products. In a traditional biofilter system, microorganisms reside on the surface of the biofilter inert media to form a fixed-bio film bioreactor where the contaminant is bio-catalysed^[1]. Small quantities of nutrient primarily nitrogen and occasional irrigation of the system is required. The operation of a typical biofilter is depicted in Figure 1.

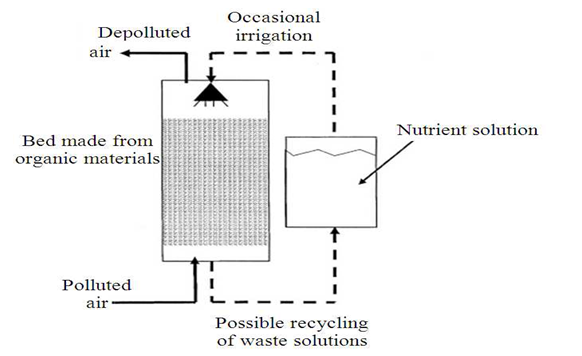

Figure 1: Schematic of a typical biofilter system according to Delhomenic and Heitz, 2005.

  In biofiltration, the bio-catalytic degradation equation processes can be represented conceptually in Equations 1 and 2, respectively:

(Eq.1)

(Eq.2)

Performance Evaluation
  Three main parameters are considered in evaluating the performance of a biofiltration system, namely contaminant loading capacity (LC), elimination capacity (EC), and removal efficiency (RE). These can be represented mathematically in Equations 3 to 5, respectively

LC (g m^-3h^-1) = (C_{g, inlet} x Q) / V      (Eq.3)

EC (g m^-3h^-1) = (C_{g, inlet} - C_{g, effluent}) x Q) / V      (Eq.4)

RE (%) = {(C_{g, inlet} - C_{g, effluent}) x 100} / C_{g, inlet}      (Eq.5)

  Several factors will impact on the operation of a biofilter. They include natural microorganisms acclimation time, feed flow rate, nutrient requirement, pressure drop, oxygen or methane requirements, pH, temperature, moisture, empty bed residency time, concentration of the contaminant in feed stream, filter bed and maintenance frequency. The interactions of these governing factors will ultimately dictate the successful performance of the biofilter.

Limitations of Biofiltration
  Although the application of biofilters to treat VOCs and odor control is relatively simple and green technology, it has some limitations and challenges as compared to other elimination techniques. The major demerits are (1) inability of the system to adapt to sudden loading stresses (2) extended acclimation requirement for the microbial population (3) acidification as a result of acid products accumulation (4) large footprint requirement.
