Structural heart disease leads to significant morbidity and mortality if left untreated with variable causes depending on age group and geographical location. In the pediatric population, structural heart diseases are due to congenital anomalies. In developing countries, rheumatic carditis is a leading source while in the western countries and elderly, the leading problem is calcium deposition on valves and ischemia induced valvular changes. Treatment approaches include open-heart surgery and percutaneous interventions. With respect to valve stenosis, there have been revolutional changes in catheter techniques such as Transcatheter Aortic-Valve Implantation (TAVI) for patients deemed at high risk for traditional aortic valve replacement and the institution of the Inoue approach for mitral stenosis. The treatment of mitral stenosis depends on the postulated cause.

  Rheumatic fever is the most prevalent cause of mitral stenosis (MS)^[1]. Cardiac rheumatic disease is a chronic manifestation of rheumatic carditis, which occurs between 60 and 90% of cases in rheumatic fever^[2-4]. Rheumatic mitral valvular disease continues to be an important public health problem, especially because it is a preventable disease; furthermore its incidence continues to grow in many developing third world countries. In Colombia, it is estimated that between 0.1 and 0.2% of deaths occur as a result of rheumatic disease^[5]. Delay in the treatment of MS leads to complications like atrial fibrillation and pulmonary hypertension^[6-8]. In 1984, Inoue et al described the first percutaneous mitral balloon valvuloplasty (PMBV) and since then, the Inoue technique has been shown to produce excellent hemodynamic results in patients with severe rheumatic mitral stenosis^[9]. Multiple trials have been done comparing PMBV to surgical mitral valvotomy with follow-up ranging from one to seven years^[10-21]. A recent meta-analysis showed comparable clinical outcomes between the two approaches^[22]. The external validity of the clinical trials are one of the most important aspect which are often ignored in the current cardiovascular literature and expert guidelines^[23,24]. The long-term follow-up data in mitral stenosis patients undergoing PMBV is not available for a country like Colombia, which is a third world country^[3]. To address this, in 1993 the Colombian Mitral Balloon Valvuloplasty registry was created to collect baseline, post-procedural as well as long-term follow-up data of patients undergoing PMBV. We therefore seek to analyze the long-term clinical results of PMBV in patients.

Methods

Data collection: The data is collected from two largest participating centers of the Colombian Mitral stenosis registry, where an institutional committee has approved the PMBV for Rheumatic mitral stenosis patients. All patients were ≥ 18 years old, known to have severe rheumatic mitral stenosis according to clinical, echocardiographic^[25] and hemodynamic parameters. The registry collected data of all MS patients undergoing PMBV from January 1993 to December 2011. The registry ended after a maximum follow-up of 15 years. We retrospectively reviewed each patient clinical history and follow-up information was collected at the time of discharge, one month, six months, one year and yearly thereafter. A committee reviewed all the medical records of the patients that died for adjudication of the cause.

Statistical analysis: Continuous variables are reported as mean +/- SD or as Median and interquartile range. Pre-valvuloplasty and post-valvuloplasty hemodynamic and echocardiographic results are compared using the KrusKal-Wallis, the Fisher or square chi square test according to the nature of variables (continuous or categorical). The significance level was set as p < 0.05. Kaplan-Meier time to event curves were constructed for two outcomes: 1) Overall survival 2) Event free survival, with event defined as mitral valve surgery or repeat mitral balloon valvuloplasty. All the analysis was performed with the STATA 11.0 software (StataCorp LP, Texas, USA).

Results

  Baseline clinical characteristics for the 182 patients included in the registry are summarized in (Table 1). The majority of patients were women 162 (89%) and 131 (80.86%/81.32%) patients had symptoms of significant congestive heart failure at baseline with predominantly NYHA class II heart failure. With respect to comorbidities, 35 (19.23%) patients had hypertension, 10 (5.49%) diabetes, 3(1.64%) dyslipidemia, 16 (8.79%) active smokers, 12 (6.59%) cerebrovascular disease and 3 (1.64%) had coronary artery disease. Balloon valvuloplasty with the Inoue balloon technique was used on (99%) of the patients while the Multitrack double balloon technique was only used in 2 patients (1%). Hospital mortality was 1% (2 patients), 5.49% (10 patients) developed pericardial effusion and pericardial tamponade occurred in 2% (4 patients). Other post procedural complications are listed in (Table 2). After mitral balloon valvuloplasty 7.7% of the patients (14 patients) had significant (grade III and IV) mitral insufficiency (Figure 1), the remainder had grade II or less mitral regurgitation.

Figure 1: Severity of Postprocedure Mitral Valvular Insufficiency.

Table 1: Baseline Clinical Characteristics.

Table 2: Postprocedural complications.

  Hemodynamic results recorded immediately before and after the balloon valvuloplasty are summarized in (Table 3). There was significant decrease in mitral valve gradient and increases in mitral valve area. The mean invasive diastolic mitral gradient decreased from 19 ± 8.01 mmHg before the procedure to 6 ± 6.92 mmHg after valvuloplasty. The echocardiographic mean gradient diminished from 14 ± 4.89 mmHg to 8 ± 3.78 mmHg. Invasive pulmonary systolic pressure decreased from 65 ± 22.35 mmHg (before) to 50 ± 19.18 mmHg post commissurotomy. Mitral valvular area as measured with echocardiography (planimetry method) was 0.95 ± 0.24 cm² before valvuloplasty and increased to 1.68 ± 0.56 cm² after treatment. There were no significant differences observed in left ventricular ejection fraction pre and post PMBV.

Table 3: Hemodynamic Changes before and after Percutaneous Mitral Balloon Valvuloplasty..

† PSP: Pulmonary systolic pressure in mmHg.
‡ MVA: Mitral valve area calculated by planimetry (transthoracic echocardiography)in cm².
§ EF: Ejection Fraction measured by transthoracic echocardiography.

  One hundred and eleven patients (60.98%) were free of mitral valve surgery or new mitral balloon valvuloplasty at 4 years. Forty-nine patients (26.92%) required valve surgery and 22 patients (12.08%) required further mitral balloon valvuloplasty (Table 4). Among the groups of patients that required an additional balloon valvuloplasty, 91% of patients only required one additional procedure (Figure 2). Thirty six (19.75%) of patients had an immediate non clinically significant iatrogenic atrial septal defect after PMBV. There after 11.72%, 9.87%, 8.02%, 6.79% at one, two, three and four years respectively. The restenosis of mitral valve after the initial procedure was 4.8% at one year, 8% at two years and 4% at three years. It peaked at 15.2% at 5-10 years and decreased to 4% at 11-15 years.

Figure 2: Percentage of Repetition of Percutaneous Mitral Balloon Valvuloplasty

Table 4: Outcomes of Patients at 50 months of follow-up.

  The overall 15 year survival was 38% (Figure 3). There were no significant differences between survivals when patients were divided with regards to echocardiographic score (Figure 4). Patients with successful initial procedure (increase in mitral valve area to 1.5 cm² measured by echocardiography) had significantly better survival compared to those without successful initial procedure (P = 0.047, Figure 5).

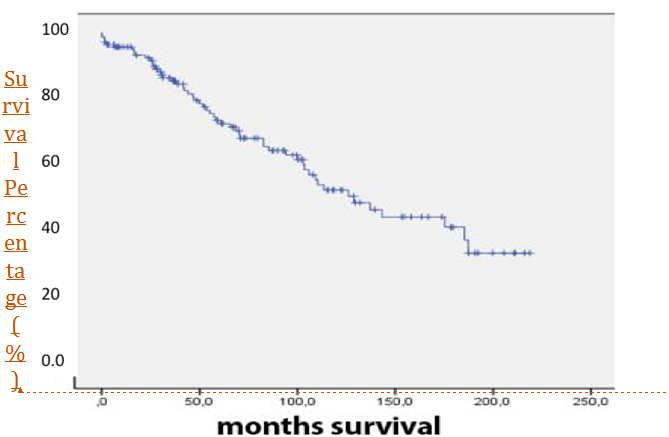

Figure 3: Kaplan – Meier CurveOverall Survival

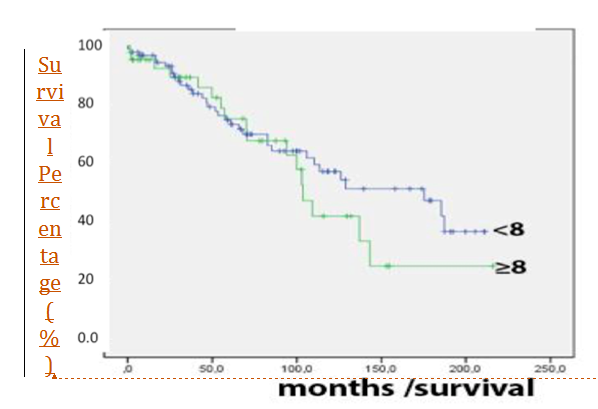

Figure 4: Survival by baseline echocardiographic Wilkins score. p = 0.713 (log rank statistic)

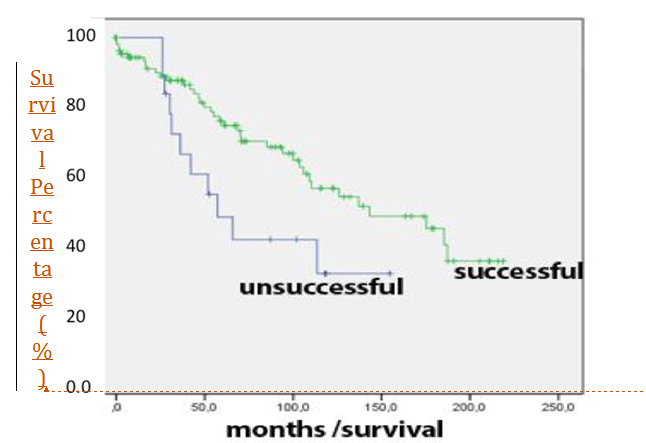

Figure 5: Survival by the initial success of the procedure. (“Success” is defined as a mitral valve area of at least 1.5cm²). p = 0.047 (log rank statistic)

Discussion

  The study and long-term follow-up of patients after PMBV in the real world setting, especially in a third world country like Colombia are of an important relevance to the National Health Systems. This is especially important in the preventive cardiology era where focus is on hard clinical outcomes including procedure safety^[1]. National registries data are important to support the long-term benefit of PMBV. From 1993 to 2011 this study enrolled 182 patients with the longest follow-up period of 15 years. As a registry, it can show what happens in “the real world” with the outcomes of these patients. The results are in concordance with previous publications around the world showing that this procedure is secure if performed by experienced operators. Furthermore, it has excellent early hemodynamic results. These benefits diminish with time, but it gives patients the opportunity to have a better quality of life as it has been demonstrated in previous studies^[10,26-28]. The diminished benefit over time is related to insufficient valve opening^[29]. Essop et al had reported a rate of restenosis with percutaneous mitral valvuloplasty at 0.08 cm²/year compared to 0.07 cm²/year for thoracotomy surgery^[30]. The rate of interauricular iatrogenic septal defects after the procedure is similar to previous studies; usually these defects are very small with few millimeters of diameter and often without hemodynamic disturbance. It is suggested that its presence does not relate to important adverse outcomes^[31]. The incidence of mild mitral regurgitation with balloon valvuloplasty (41%) is similar to that of previous studies (30-50%)^[32]. The mitral insufficiency is thought to be related to procedural valve trauma^[33] survival. In this registry, the survival rate at one year after mitral balloon valvuloplasty was 96%. 60.7% of patients were alive and free of mitral surgery and repeated mitral valvuloplasty at 50 months. Patients that had severe disease also had high Wilkins echocardiographic scores. In the follow-up period this accounted for a trend towards adverse outcomes independently of the initial success of the procedure. It is interesting that patients with valvular restenosis did not have a worse survival compared to those without restenosis. This finding has been previously reported in other registries^[34,35]. Our data also confirms that a patient with failed valvuloplasty can be a successful candidate for future surgery^[37,38].

Conclusion

  Percutaneous mitral valvuloplasty using the Inoue balloon technique improves the hemodynamic profile of severe mitral stenosis. Long-term follow-up suggest that it is a safe alternative to mitral valve surgery in well selected patients. Furthermore, this technique can be used to treat a patient multiple times, and if it is not successful, it does not preclude the use of alternative treatments.
