Aspirin is a medicine that is being used for many years as a pain killer. However, it has another action to lower the risk of forming a blood clot in the arteries of the heart (coronary arteries) or brain. This reduces thedanger of having a heart attack or stroke. In medicine, one of the major health hazards is atherosclerosis, which is the leading cause of death in many countries. Atherosclerosis or stenosis is a cardiovascular disease. Cardiovascular diseases are diseases of the heart or blood vessels like arteries, vein and capillaries. However, in practice, when doctors use the term heart disease they usually mean diseases of the heart or blood vessels that are caused by atheroma Atherosclerosis or stenosis. Patches of atheroma are like fatty lumps that develop in the inside lining of some blood vessels (arteries). These diseases include heart attack, angina, stroke, transient ischaemic attack (TIA) and peripheral arterial disease. Stenosis leads to an increase in the resistance to the flow and associated reduction in blood supply in the downstream which also causes hypertension, myocardial infarction, and cerebral strokes, etc^[1,2].

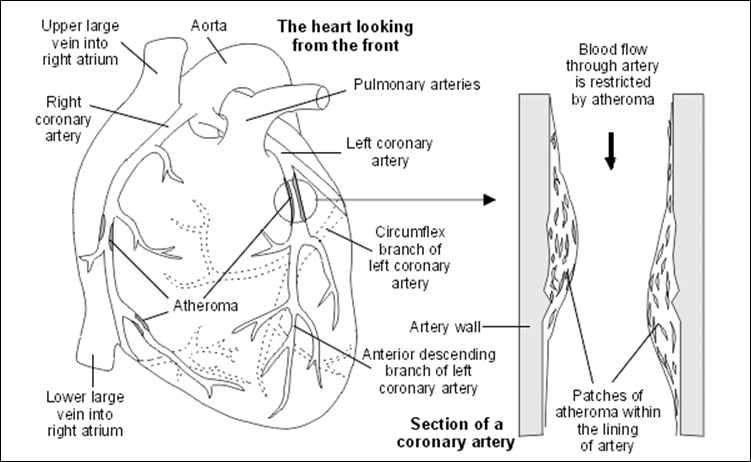

Figure 1: A heart and an artery with atheroma.

  Hence it is essential to study the blood flow through a stenosed artery to prevent the arterial diseases. Most people who have a cardiovascular disease (for example, angina, peripheral arterial disease, or a previous heart attack, transient ischemic attack (TIA) or stroke) take a low-dose aspirin (75 mg) each day or clopidogrel (75 mg) each day. This reduces the risk of having a heart attack by about a third. It reduces thedanger of having a stroke by about a quarter. A daily low dose of aspirin also reduces therisk of developing some common cancers. Given this, several theoretical and mathematical models^[3,4] have been developed to study the blood flow characteristics due to the presence of stenosis in the lumen of the blood vessel. Mohan, V., et al (2013)^[5] examined the effect of paired stenosis through the small artery. Bhatnagar, A., et al (2015)^[6] studied the effects of an overlapping stenosis on blood flow characteristics in a narrow artery. All these investigations have considered the consequences of stenosis through a tube of uniform cross-section. But, it is known that many ducts in physiological systems are not horizontal but have some inclination to the axis. Mekheimer, Kh.S., et al (2012)^[7] studied the flow of Herschel-Bulkley fluid through an inclined tube of the non-uniform cross section with multiple stenoses. This work^[8] have analyzed mathematical models by considering blood as a Herschel-Bulkley type on- Newtonian fluid. In a recent paper Ellahi, R., et al (2014)^[9] have presented a mathematical model to show the effect of stenosis on Casson flow of blood. A mathematical model of blood flow through irregular arterial mild stenoses is developed by Karimi, A^[2] and studied that if the viscosity of the fluid increases the velocity of fluid decreases in the presence of stenoses. The developed a mathematical model for studying blood flow through a narrow artery with multiple stenoses, and they have observed that stenoses height and axial velocity of flow very much influence the shear stress in a stenosed artery^[10]. In the present study, we propose to discuss the effects of inclined multi-stenoses arteries on blood flow characteristics using Casson’s and Bingham plastic fluid model. Results have been comparing the both fluid model. Mathematical equations have been solved with the help of numerical technique.

  Formulation of the problem Let us consider an axially symmetric, laminar, fully develop flow of the blood through a tube of non-uniform cross-section and with two stenoses Figure.1, 2.

  The momentum equation is given by

  Where τ_rz is the shear stress for the fluid, The Casson Fluid model:

The Bingham Plastic Fluid model:

The boundary conditions are:
τ is finite at r = 0 (7)
u = 0 at r = h(z) (8)

For the analysis presented in the sequel, we use the following non-dimensional variable

The geometry of the stenoses in non-dimensional form is given by figure 2.

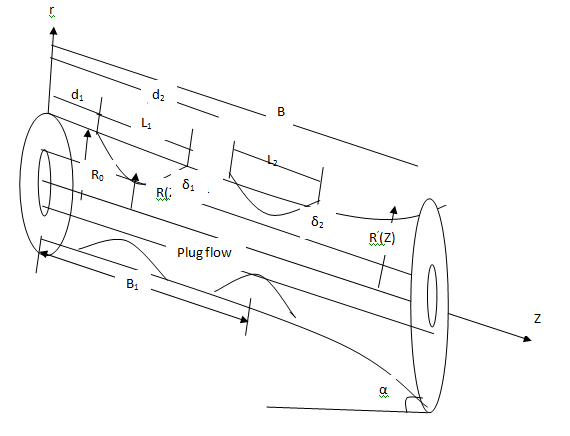

Figure 2: Geometry of an inclined tube with multiple stenosis.

  The following restrictions for mild stenoses are supposed to be satisfied:
δ_i << min(R₀, R_out)
δ_i << L_i, where R_out = R(z) at z = B.
Here L_i and δ_i are the lengths and maximum heights of two stenoses.

  Solving Eqs. (1),(3) and (5) under the boundary conditions (7) and (8), we obtain the velocity, when P = -∂p/∂z, and f = sinα/F.

  Velocity for the Casson’s fluid model is given by Eq. (11), and the speed for the Bingham Plastic fluid model is given by Eq. (12).
Using the condition (14) and (16), we finally get the upper limit of the plug flow region (i.e., the region between r = 0 and r = r₀ for which |τ_rz | < τ₀) as

And using the condition τ_rz = τ_h at r = h, we obtain

Taking r = r₀ in Eqs. (3.1), (3.2) we get the plug core velocity as

  Plug core velocity for the Casson’s fluid model is given by Eq. (15), and the socketbasespeed for the Bingham Plastic fluid model is given by Eq. (16).

The volumetric flow rate is defined by

  Substituting Eq. (11, 12) and Eq. (15, 16) in Eq. (17) and integrating, we finally get

Results and Discussion

  Stenosis is a severe cardiovascular disease. The irregular growth of stenosis affects the flow of blood in the arteries and which leads tosevere circulatory disorders. Stenoses are formed by the accumulation of fats/ lipids on the inner wall of the arteries. Stenosis developed in the arteries can cause several diseases like blood pressure, atherosclerosis, heart attack and brain hemorrhage. The effects of various parameters on the resistance to flow are computed numerically by taking

And d₁ = L₁ = L₂ = 0.2, B₁ = 0.8, B = 1, β₁ = 0.01.

  Figure. 3 - 4, gives the results for resistance to flow with the height of the secondary stenosis for different values of α. It is found that the Casson’s fluid model gives higher results in comparison to Bingham Plastic fluid. It is found that resistance to flow increases on increasing values of δ₂ and increases for the decreasing values of α for the both fluid models^[11,12]. Figures. 5 - 6, gives the results for resistance to flow with the height of the secondary stenosis for different values of α and τ. It is found that the Casson’s fluid model gives higher results in comparison to Bingham Plastic fluid. It is found that resistance to flow increases on increasing values of δ₂ and τ. It is also discovered that the resistance to flow increases for the decreasing values of α for the both fluid models^[5,13].

Figure 3: Variation of resistance to flow with respect to δ₂ for different values of α When F = 0.1, δ₁ = 0. * for Casson fluid and # for Bingham Plastic fluid.

Figure 4: Variation of resistance to flow with respect to δ₂ for different values of α, When F = 0.1, δ₁ = 0.1.
* for Casson fluid and # for Bingham Plastic fluid.

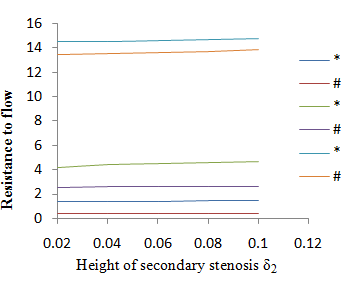

Figure 5: Variation of resistance to flow with respect to δ₂ for different values of τ, when, δ₁ = 0.
* for Casson fluid and # for Bingham Plastic fluid.

Figure 6: Variation of resistance to flow with respect to δ₂ for different values of τ, when, δ₁ = 0.
* for Casson fluid and # for Bingham Plastic fluid.

Conclusion

  It is observed that the resistance to flow increases with the height of both the primary and secondary stenosis (δ₁, δ₂) for both the fluid models. It is also noticed that the resistance to flow also decreases with the decreasing value of inclination (α) in Cassons fluid model and Bingham flexible fluid design. This comparison presents a better study to understand the flow characteristics of blood having multi-stenoses through an inclined tube of non-uniform cross-section. And the significance of aspirin to prevent the blood clotting.
